RadioactivityCounter for mobile phones. Android Version (Apple Version braucht keine Dateneingabe) web_hires_36_rdk2

Here you find the current measurement tables for the different phone we have tested use it for the ADJUST MENU. The values on your phone might differ, as we cannot be sure if sensors are changed within one model type. To find the internal name, an example is displayed on the right side. Sometimes only numbers are shown. Also have a look at our video for the adjust menu. Attention phone with ** or * rating below are not very sensitive, we don’t recommend them for this application. Have a look at the ENGLISH VIDEO for operating instruction

The Text l10 means level 10 (=version 2.3.3) Attention 4.3.x minimum required.

If you have problems with the settings or measurement results, please please ask and write an email. Please do this before you write a bad one star or so comment in the market, where we cannot give a response or help. We really answer very quickly and try to solve any problems - we know that the adjustment currently is a little bit difficult and we work on improvements for this but we need feedback. Bitte email senden wenn Fragen !

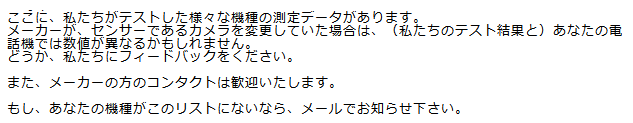

jpn3

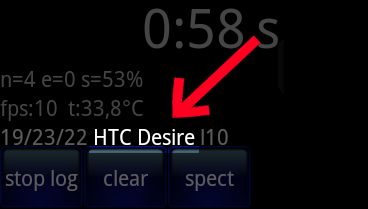

device-2011-09-17-192339_LT_Ausschnitt

Important: Check the noise value after calibration, above its n=4. If it is much higher than in the tables, check your tape for the lenses and redo the calibration. Use double tape or more it must be totally light proof. Also the CPM without any source should be not to high (like in our tables CPM0 = background noise). With a high value the camera gets very insensitive. Always use your mean value (60 min measurement!)

As we got some feedback on measuring HOTSPOTs in Japan. With our App currently its difficult to measure below 1-10µSv/h directly. We currently dont recomment trying this with the low sensitive devices. For good ones (>4 stars) you still need a very long measurement time.

 Feedback and logfiles welcome we can test then the next update with real values PLEASE email.

The values for n,border and CPM-Noise are set automatically after the first calibration - the table is a reference for values we had.

Achtung: Apple iOS  User brauchen keine Daten zur Eingabe - attention iOS user don’t need to enter values,  update for iPhone 6 and some other models comming soon (depends on the App Store valdiation process - expect Feb 2016)

tested  phones (mean values)

rating

n

auto

border

CPM-Noise

automatic

CPM for

100 µGy/h

CPM for

1000 µGy/h

CPM for

50000 µGy/h

Sony Xperia D2303 frontcam

*

3

-4

0

0

not yet measured



Sony Xperia D2303 backcam

***

15

-4

8

180

1800 estim



Samsung Galaxy Grand Prime

in Test













Samsung SMT-100

in Test













Google Nexus 6P

in Test













Samsung S6

in Test













Samsung S5

in Test













Nexus 5 - frontcam

***

2

2

0,3

600

6073

331311

Nexus 5 - backcam

*

1

2

0,3

12

162

7400

HTC ONE - frontcam

**

5

-2

0,1

73

766

34223

HTC ONE - backcam

not working













Nexus 4  - frontcam

**

12

-2

1,6

48

493

25540

Nexus 4 - backcam

***

4

2

3

148

1609

78199

Samsung S4 - frontcam - GT-I9505

***

6

-2

6,4

200

2025

103666

Samsung S4 - backcam - GT-I9505

***

4

-2

0,2

220

2202

111965

HTC Desire S backcam

******

4

2

2

3225

30421

1617666

Samsung Galaxy Mini GT-S5570 ++

******

3

2

3

2711

27310

1345327

HTC Desire

*****

4

2

2

1933

19058

966015

Nexus S (backcam) (diff noise)

*****

9

2

10

1074

10095

558366

Nexus S (backcam)

*****

6

2

16

1759

17105

874850

Nexus ONE

*****

10

2

10

1200

12000

560000

HTC Sensation (backcam)

****

10

2

20

1000

9589

456131

Samsung GT-S5830

****

6

2

6

1000

9000

447533

HTC Evo 3D X515 backcam

*****

6

2

2

1137

10000

490000

Samsung Galaxy W GT-I8150 backcam

****

9

-2

5

964

10280

446601

Samsung Galaxy W GT-I8150 frontcam

****

4

-2

5

933

9713

399107

Samsung Galaxy Mini 2 GT-S6500

***

8

-2

2

424

4060

194089

Samsung Galaxy S2 GT-I9100 frontcam

***

3

2

2

750

8300

430000

Samsung Galaxy S3 GT-I9300 front

***

6

-2

2.2

258

2311

113669

Samsung Galaxy S3 GT-I9300 backcam

***

8

-2

4.7

141

1365

66697

Sony Ericson Xperia ARC LT15i

***

9

2

2

390

3681

183457

Sony Ericson Xperia X10i (OS 3.3.3)

***

11

2

8

407

3744

178324

HTC Wildfire

***

11

2

5

179

1832

103955

HTC Wildfire S A510e

***

13

2

3

487

4426

214000

Samsung S2 GT-I9100 backcam

***

6

2

4

320

2906

151360

Motorola Droid 3 frontcam

***

34

-5

38

458

3120

108792

Motorola Droid 2 backcam

**

20

2

4

91

694

33896

HTC Desire HD

**

19

2

13

60

522

25020

LG Stereo LG-P920 backcam

**

18

2

13

90

714

28732

Motorola Defy / MB525 (waterproof)

**

19

2

7

110

850

37927

Vodafona 858 +++

*

13

2

7

27

293

13288

IDEOS std +++

*

8

2

1

16

203

10651

Ideos X3, U8510, Huawei, backcam

***

10

2

4

418

4118

204133

Samsung Galaxy S, I9000 backcam

variant names: Epic, Vibrant, Fascinate, Captivate,  Mesmerize some have only the backcam and a diff. name (SGH-T959P)

***

10

2

3

298

2870

144607

Samsung Galaxy S, I9000 frontcam +

***

10+

2

3+

420

4678

218360

Dell streak 5 +++ backcam

*

14

2

4

36

400

18000

Motorola Droid 2, Milestone 2 back

**

20

2

3

85

780

33124

Acer  A500 (Picasso) (frontcam)

***

7

2

3

241

2256

94500

Galaxy Tab 7 GT-P1000 (back) **

***

7

2

3

577

4408

234600

HTC Incredible S backcam

*****

18



2

1182

9992

491917

Acer Iconia A100  frontcam

***

5

2

2

218

1916

109668

Acer Iconia A100  backcam

*

25

2

2

instable

72

3781

Sony Ericson St17i backcam

***

13

2

12

177

1629

76507

Sony Ericson Ray St18i backcam

??

1

2

1

customer data

wishlist



Sony Ericson Acro SO-02C

***

10

2

5

242

2684

132337

NEC MEDIAS N-06C

***

9

2

6

301

2945

147138

Samsung  Galaxy 551   GT-I5510

***

3

2

1

633

6433

326657

Sharp IS03

delayed







lost





Sharp IS05

delayed







lost





HTC Aria S31HT, liberty, (AT&T same as E-mobile version)

***

10

2

2

634

6338

299461

Sharp  SH03C

never received







wishlist





Toshiba REGZA - T01C

delayed







lost





HTC Evo 4G / Winmax ?! / PC36100

frontcam

***

14

2

2

533

4878

238756

HTC Desire Z - Aka - G2 (same data)

HTC Vision backcam

*****

10

2

10

1836

17189

3282071

Fuijtsu F-12C

never received







wishlist





Pantech Sirius Alpha IS06

never received







wishlist





Base Lutea2 (ZTE Skate)

**

9

2

2

89

850

44588

Dell Streak (5) frontcam (rooted)

*** not stable

15

-2

10

827

10715

502565

iida Infobar A01 (high noise our model)

***

59

2

23

522

4462

227087

HTC Tattoo

gave up







cannot test

1.6 too old

we try to update

myTouch 4G Slide backcam

****

3

2

2

719

8263

386122

LG G2X (LG-P990) backcam

**

6

2

1

38

442

20100

LG G2X (LG-P990) frontcam (2.3.3)

*

11

2

1

1



not useable

Motorola Droid 1, XT720

gave up







after update to 2.2 we can test



we try to update

Sony Xperia Acro IS11S

never received







wishlist





Sony Xperia Arc S LT18i

***

5

2

8

480

5037

231804

NEC MEDIAS N-04C backcam

***

10

2

2-10

228

2590

131475

Samsung GT-N7000 frontcam - Galaxy note (update req 1.6 for 4.x.x)

***

3

2

8

655

7057

337870

Sony Xperia mini St15i

never received







wishlist





LG-P500 optimus one

**

14

-2

3

90

635

29480

Sharp 003SH

never received







wishlist





Sharp SH12C backcam

never received

69

2

10

wishlist

user data



Motorola Bravo / MB520

never received







wishlist





Galaxy Nexus frontcam- Android 4.02(font set to small font - rev 1.6)

**

27

2

3

66

623

327166

Tablet Assus TF101G

never received







wishlist





HTC HD2  with android mod

gave up







we try to mod

mod required



Sony Xperia X10 mini

gave up







we try to mod

mod required



Sony Ericson E10i with Cygmod

*

3

2

0.4

16

122

5896

Samsung SPH-M580

never received







wishlist





Samsung Galaxy Y GT-S5360 r2.3.5

**

10

-2

7

90

849

52313

Lumix P-02D (rev 1.6)

**

12

2

2

50

561

29223

















send a request if yours is not listed -  Please provide a valid email address for answering your requests.

どうか、もしあなたがこのテーブルでそれを見いださないなら、あなたの電話のために、リクエストを送ってください。

* Attention usually we automatically cancel static defect pixel (most sensors have), but in some cases if there dynamic defect pixels with increased noise, which we currently we cannot detect automatically, you have to increase the CPM 0 (CPM-noise) value and add it to all CPM values. If such a pixel is close to the border you can increase the border value (this decreases sensitivity) !

+ frontcamera not recommended due to instable noise and temperature sensitivity when radiation is low.

** with 2.3.3 the frontcamera can be used, currently the update is not available for us here in Germany so we will provide the backcam measurements only until we get an update.

++  Samsung Mini / ACE phone with Android 2.2.x , when you press the power off button quickly to switch off the screen, and after switch on again without leaving the application, a black screen comes up - you need to restart the phone - bug seems to be fixed after updating to the latest Android version 2.3.x (use Samsung Kies !)

+++ very non sensitive sensors in the phone, not recommended !

Let us know if your noise value and CPM-noise  (CPM-0) is very different from our table, we might check if there are different sensors used at the manufacturers (always possible that 2nd sources are used with different data).

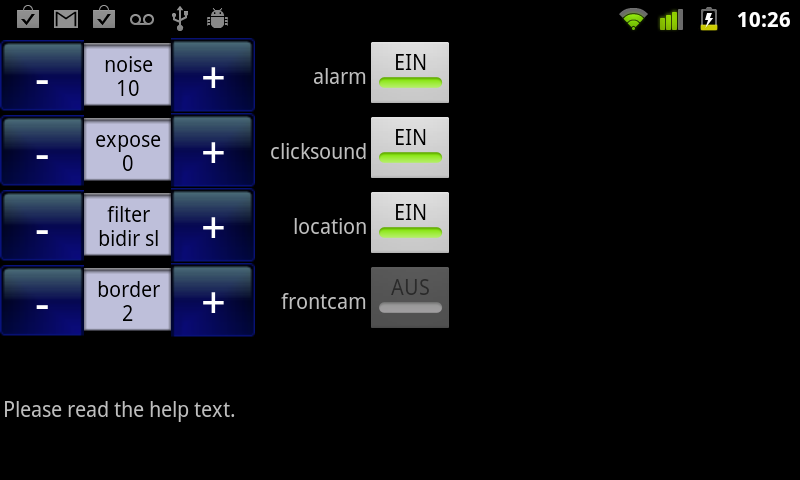

device-2011-10-06-10342_adjust_r12_smldevice-2011-09-10-102431

Enter the values in the table according to your phone like  the example for a Nexus One. See instruction video on our info page.

Steps to do:

1. Do a 60 minutes measurement, if the mean CPM is much larger than in our table (CPM-noise (we also called it CPM0 sometimes)  = cpm noise in the adjust menu) reduce n (noise) in the settings menu. If the mean is zero reduce n (minimum n=1). Do the measurement again in this case. The new version does a automatic measurement but not that long.

2. Use this mean value for CPM-noise in the adjust menu. Its a combination of camera noise and hits. If you have lots of pixels in the border of the camera try to use border = -2 (ellipse) which is less sensitive at the borders and start with 1. again

1. Bitte erst mal eine 60 Minuten Messung durchfuehren. Ist der Mittelwert viel höher als in unserer Tabelle der Wert CPM 0  dann im “setting” menu n erhoehen (=Noiseschwelle). Dann neu 60 Minuten messen. Unsere neue Automatische Messung setzt den Wert schon mal fuer ca. 10 Min.

2. Den Mittelwert als CPM-noise verwenden. Wenn viele Pixel im Randbereich auftauchen, bitte mit Border=-2 (Ellipse) versuchen und neu messen. Auch dass wird beim ersten Kalibriern inzwischen automatisch versucht.

.

The Tables below are just for general info. You dont need them for calibration. Nur zur Information:

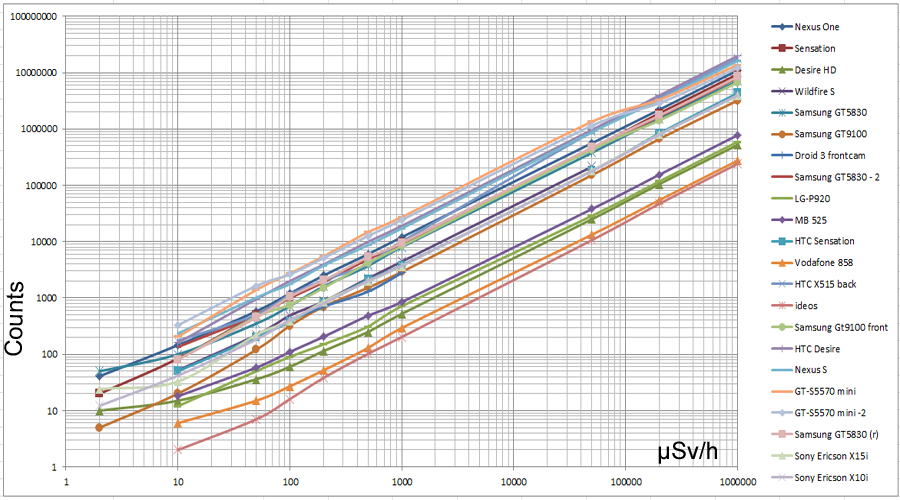

Präsentation1_chart3_900e

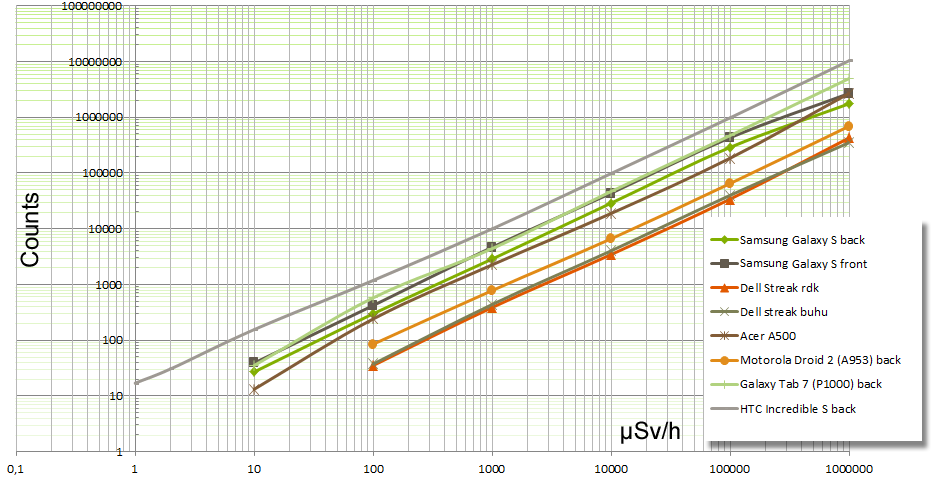

praesentation 3  900g

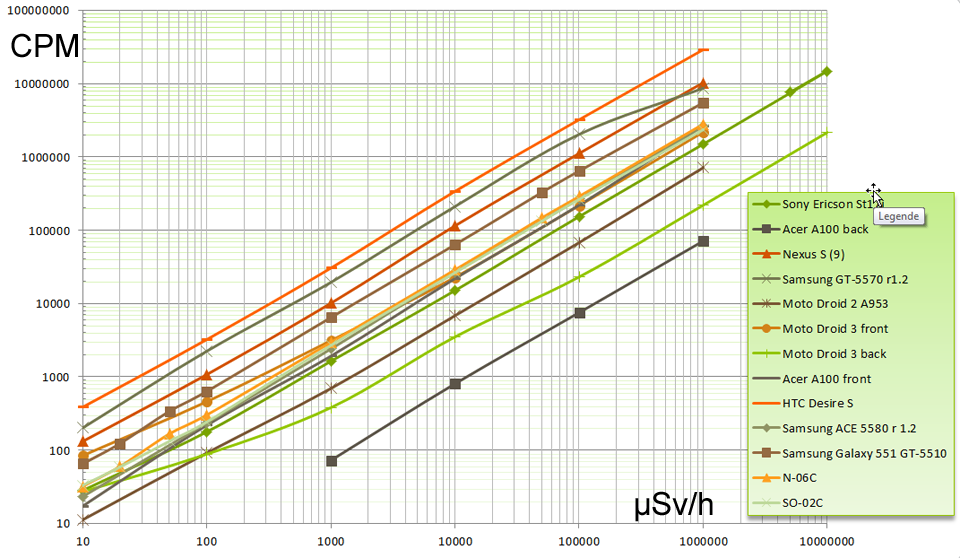

Präsentation1_chart5_900b

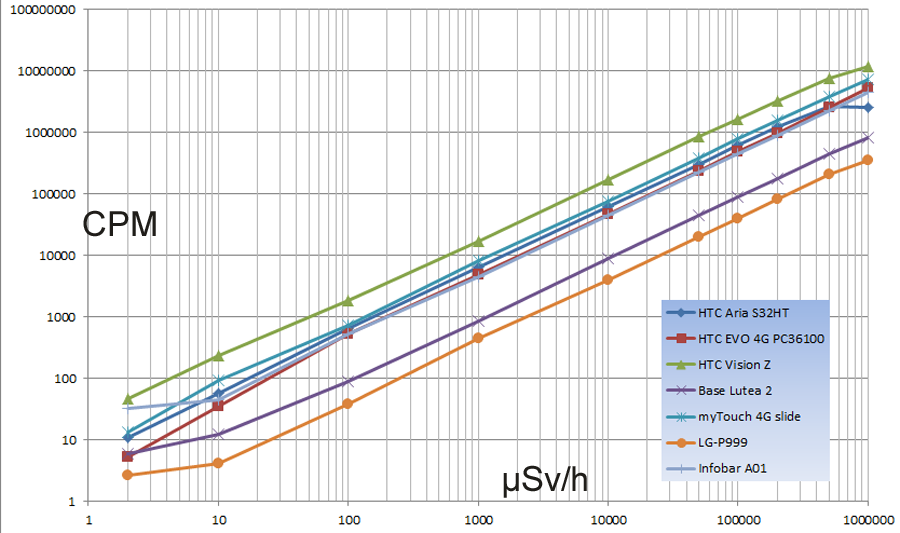

Präsentation1_chart6_900

(C) 2016 MultiMediaStudio Dipl. Ing. Rolf-Dieter Klein
